Vatech Dental Imaging System Intra Oral Digital X-ray EzSensor

$2,909.03 $0.00
-3%
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $25.00 OFF ON ORDERS OVER $500.00
  • GET $60.00 OFF ON ORDERS OVER $1,000.00
Quantity:
  • Vatech Dental Imaging System Intra Oral Digital X-ray EzSensor
  • Vatech Dental Imaging System Intra Oral Digital X-ray EzSensor
  • Vatech Dental Imaging System Intra Oral Digital X-ray EzSensor
  • Vatech Dental Imaging System Intra Oral Digital X-ray EzSensor
  • Description
Dental Digital X-ray system sensor & software Vatech
Note : the parcel will be shipped in 4 bussiness days after we received payment



Product Introduction:
1. System Description
EzSensor is a modern digital imaging solution for intraoral dental radiography. Its advanced
CMOS technology provides excellent image quality. For patient comfort, the ergonomic design
is based on human intraoral anatomy.

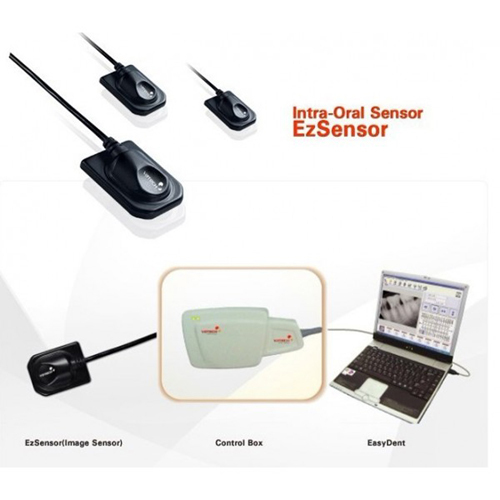

EzSensor is a digital X-ray imaging system designed specifically for dental radiography within
the oral cavity. The system captures X-ray images and makes them available for display and
storage across your computer network.
EzSensor is connected by a ‘USB A-A’ cable (supplied separately) to a compatible Windows XP or Windows Vista or Windows 7 PC.Warning: this product is not suitable for Windows10 system;EzSensor is provided the power from PC. Support for the
EzSensor is provided by compatible software programs such as EasyDent. For other custom applications, a programmer’s guide is available.
The EzSensor includes a detachable holder that can be mounted on the wall or other stable
surface.
2. The EzSensor comes with the following features:
● Excellent image quality based on advanced CMOS technology
● More comfortable sensor ergonomic shape for the human oral structure
● Lower dose exposure
● Enhanced durability
● Easy-to-use USB interface


Parameter

Description

Detector Structure

Low Noise Hy brid CMOS

Dimensions (W x L x T)

Size 1.5: 1.14 x 1.52 x 0.19 inch (29.2 x 38.7 x 4.95 mm)

Pixel Pitch

0.035 mm

Active Pixel Array

Size 1.5: 686 x 944 pixels (24.01 x 33.04 mm)

Grayscale

4096 gray levels

Resolution

14.2 lp/mm (theoretical)

USB Cable length between Controller and PC

3m

Electrical rating

DC 5V, 500mA

Operation mode

Continuous

Ambient Temperature

10℃ to 30℃ (Usage)
20℃ to 60℃ (Transportation and Storage)

Relative Humidity

30%to 95%(Usage) 10% to 95% (Transportation and Storage)

Air Pressure

700 to 1060 hPa

EU classification

Medical Devices 93/42/EEC as a class IIa

Protection against shock

Type B applied part

Protection against water/matter

IPX0

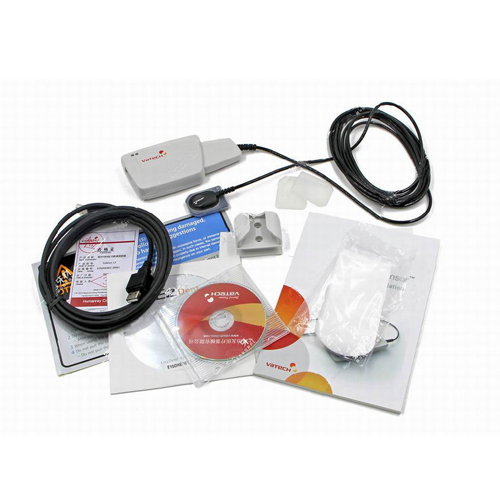

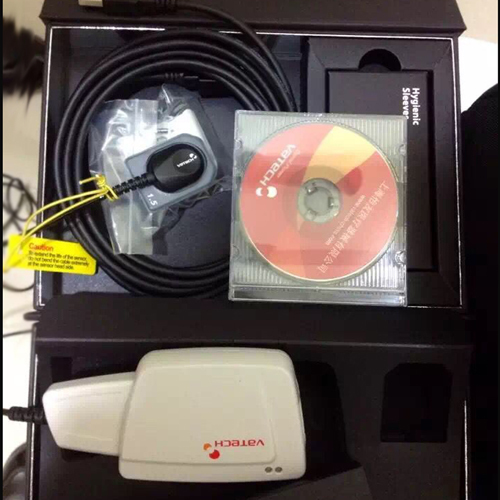

3. EzSensor system components
(1). Sensor Module (2). Control Board Box
(3). USB PC Interface Cable (3M) (4). Holder for Sensor
(5). Silicon cover (6). Wrap* (Hygienic Sleeves)
(7). S/W Installation CD (EasyDent + EzSensor Driver)

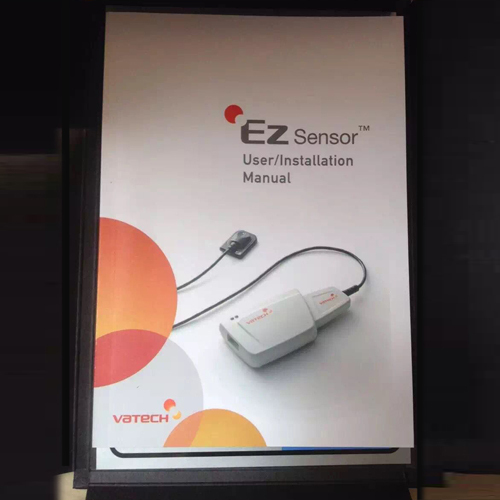

(8). EzSensor Manual (Document )
