Description

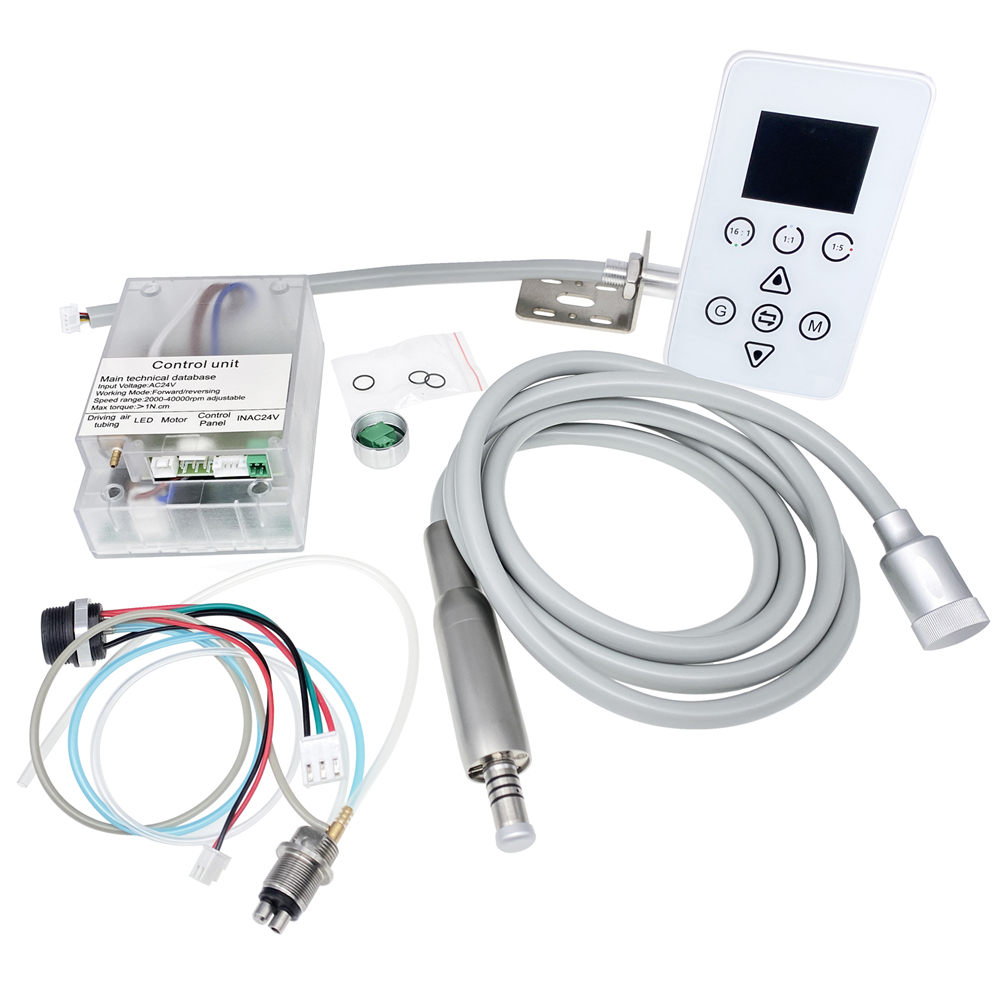

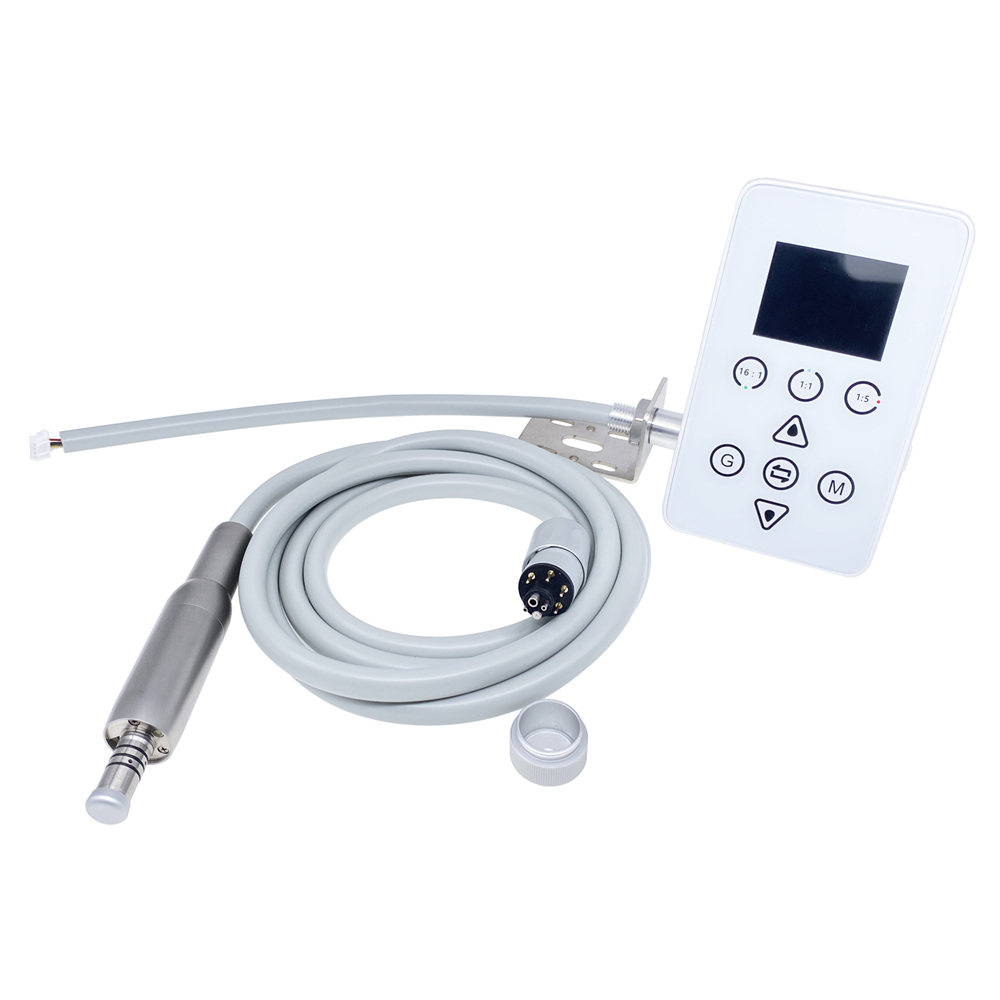

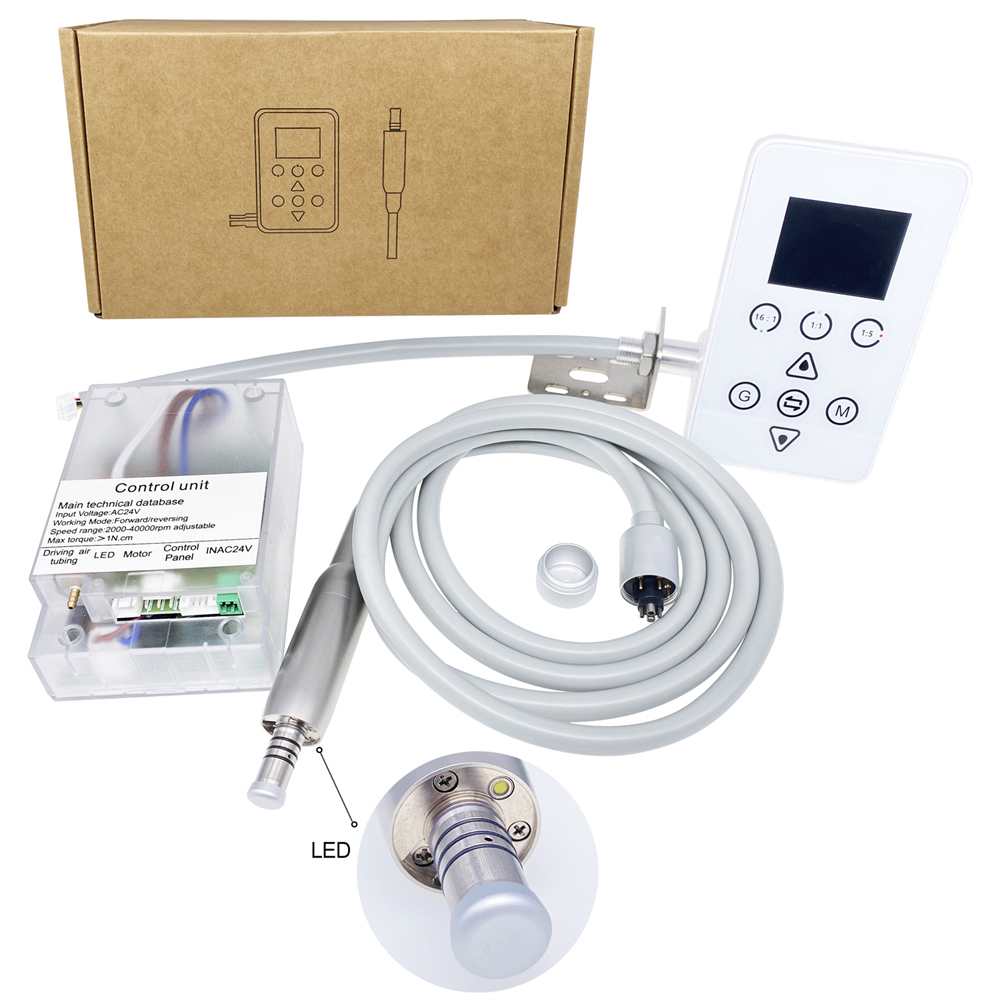

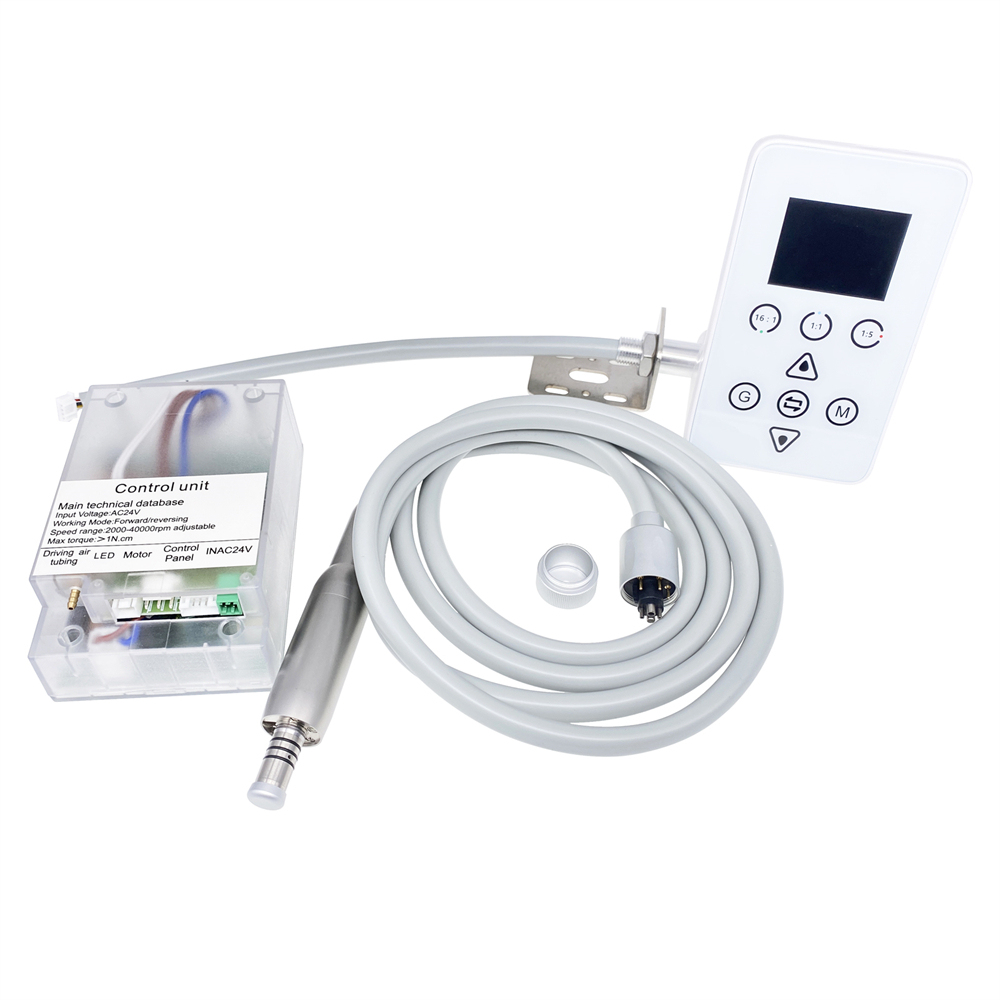

The Built-in Grinding Machine is used for root canal treatment, preparatory refinement, polishing, and other operations, and is used in conjunction with dental handpieces.
Product Features
- This device can be adjusted to forward or reverse rotation.
- After connecting to the dental unit, the dental unit air pressure switch will control the working state of this device.
- Speed and ratio can be adapted to different dental handpieces.
Specification
Power supply:
Input: 24V
Current: 2.5A (MAX)

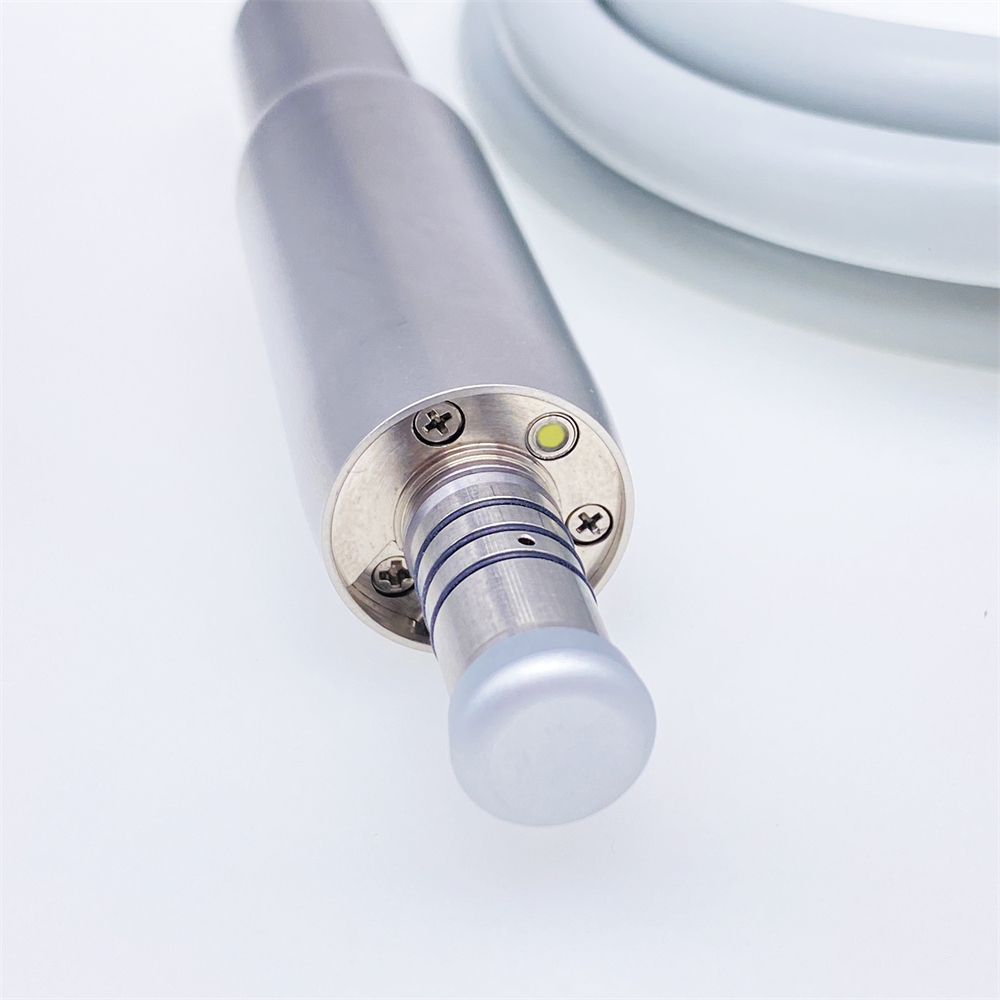

Motor
Working mode: Forward/reversing
Speed range: 2000–40000r/min
Max torque: >1N·cm
Sterilization method: 20 mins at 121°C / 15 mins at 132°C

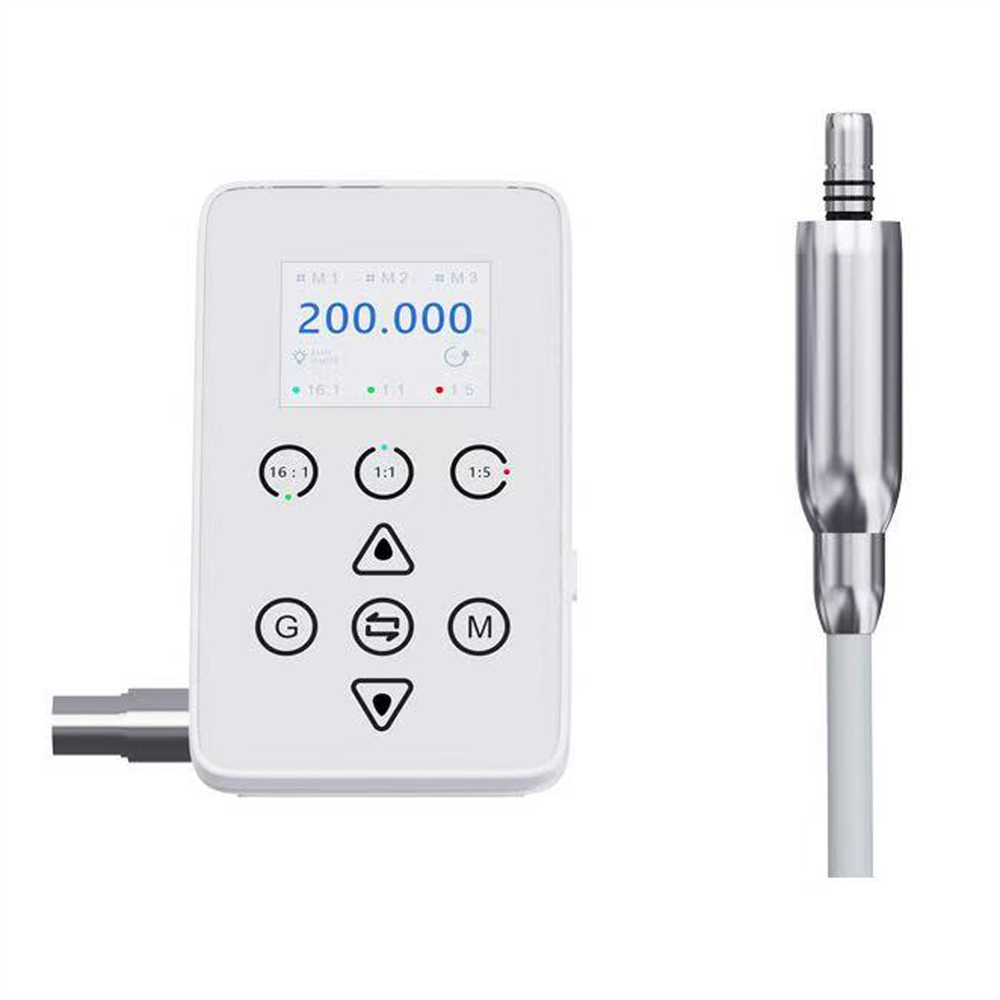

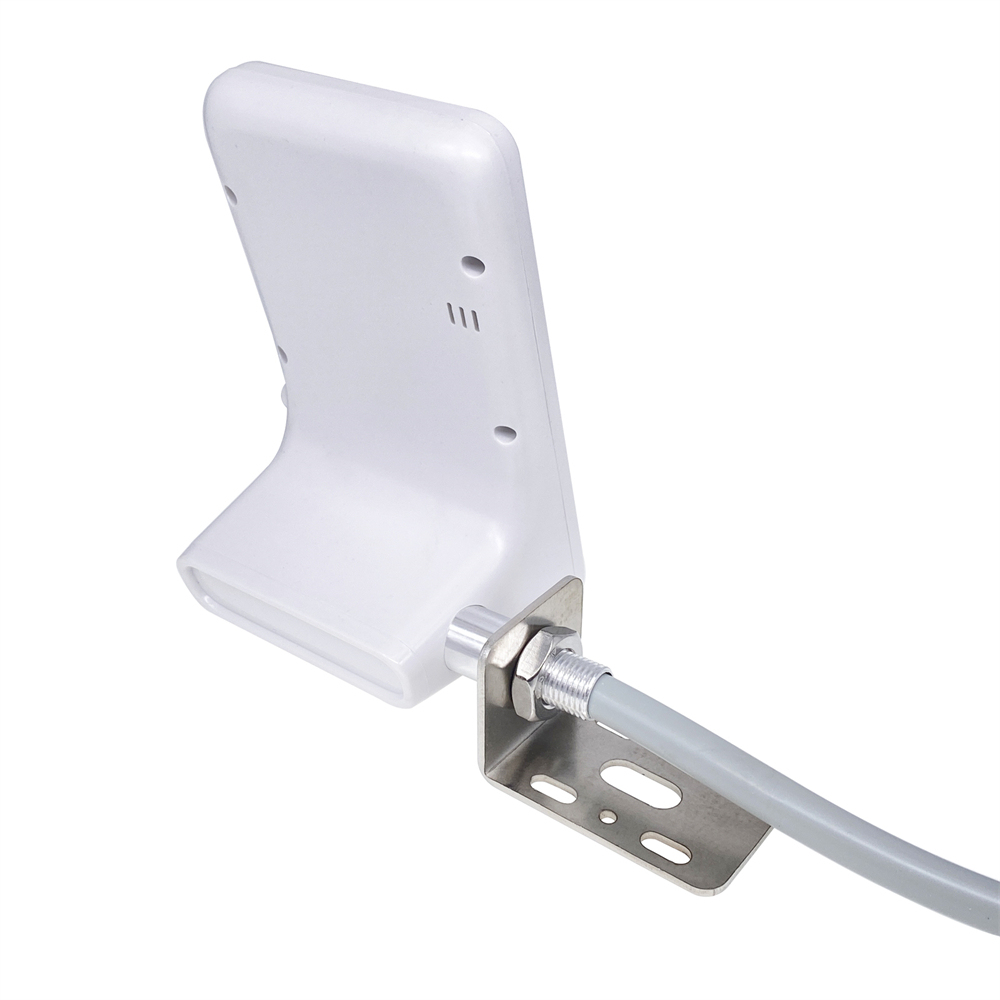

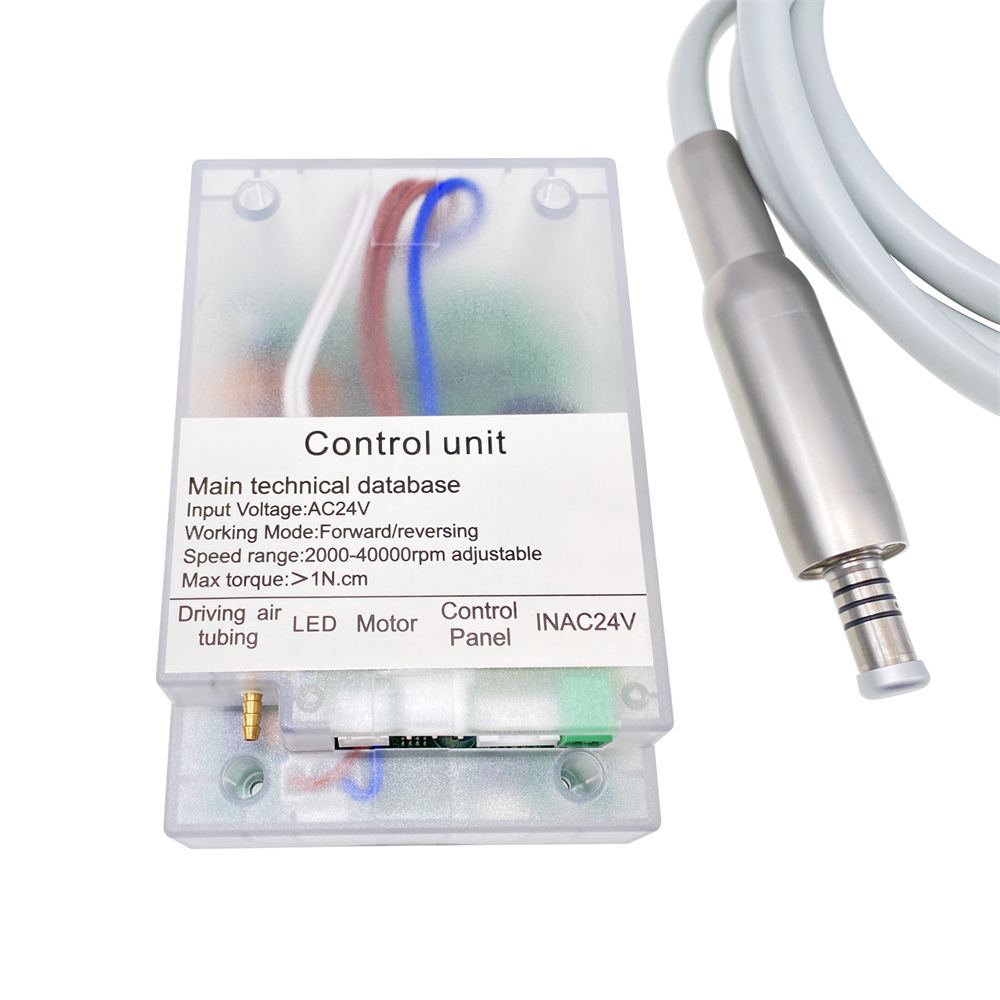

Control unit
Work air pressure: 2–4kgf/cm²
Control unit size: 115×90×35mm
