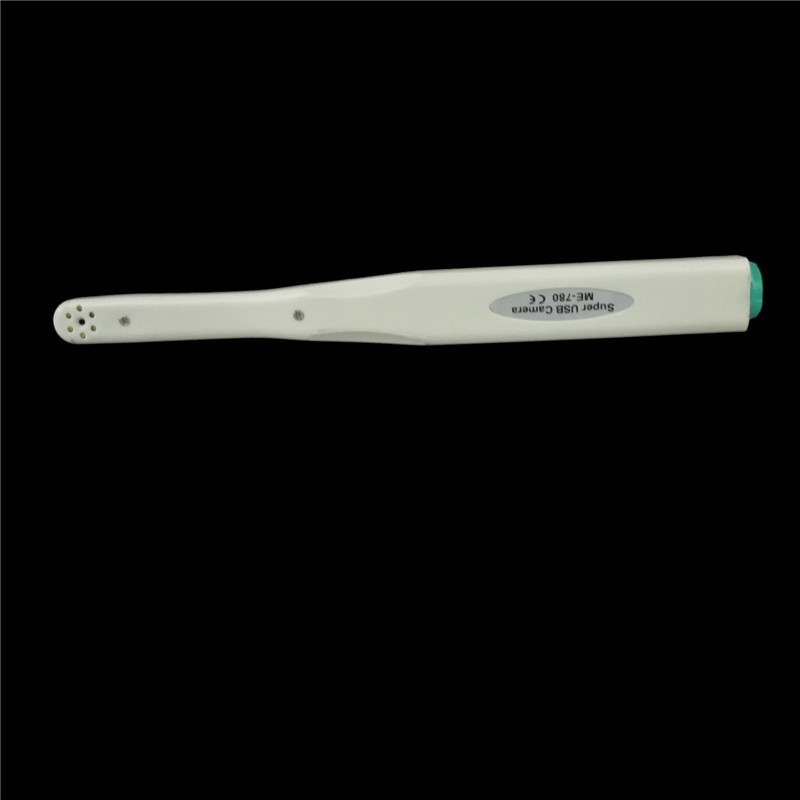

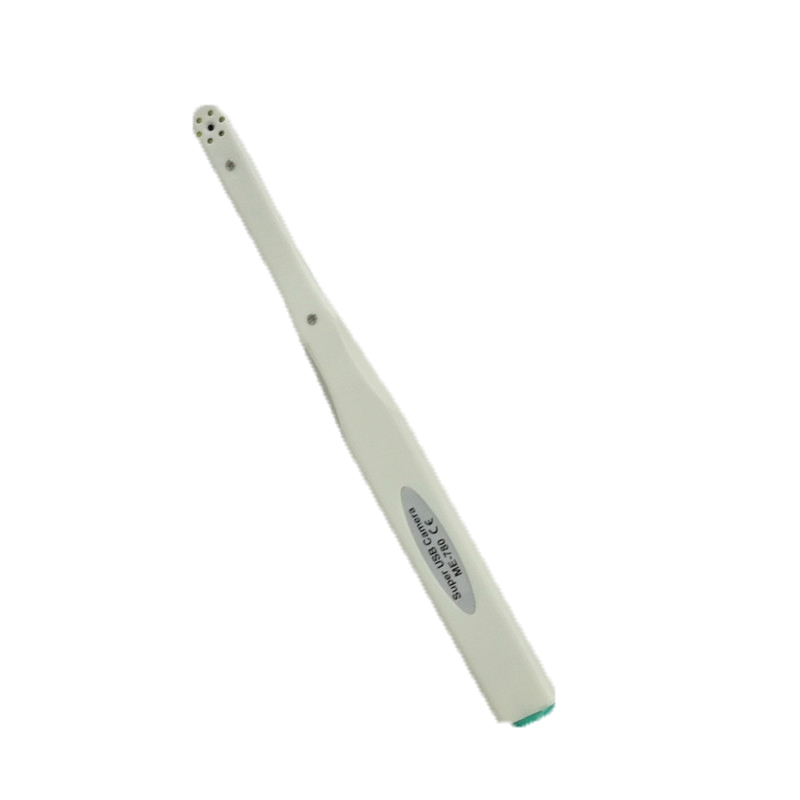

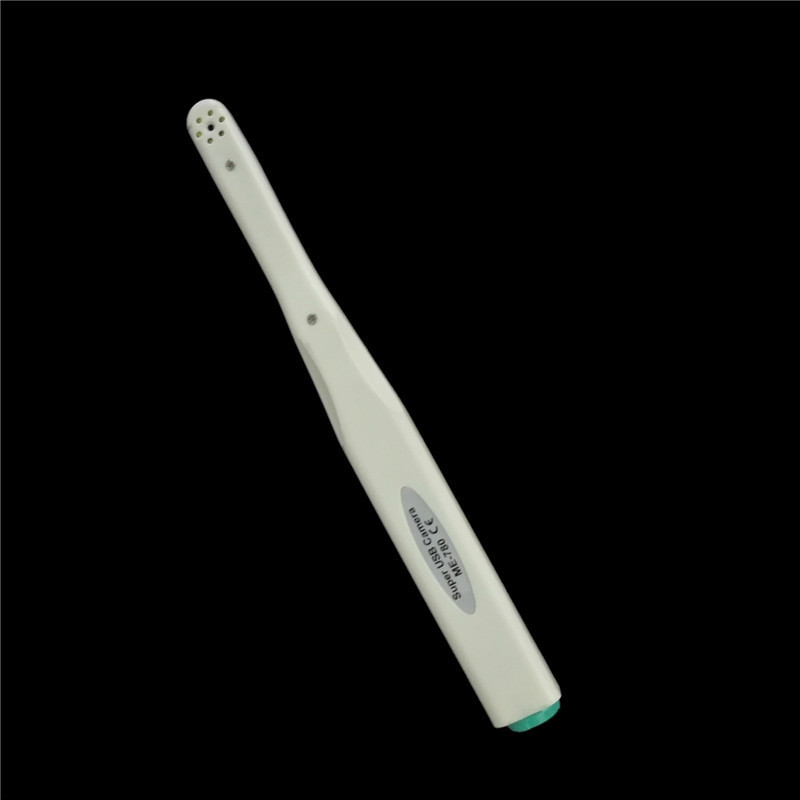

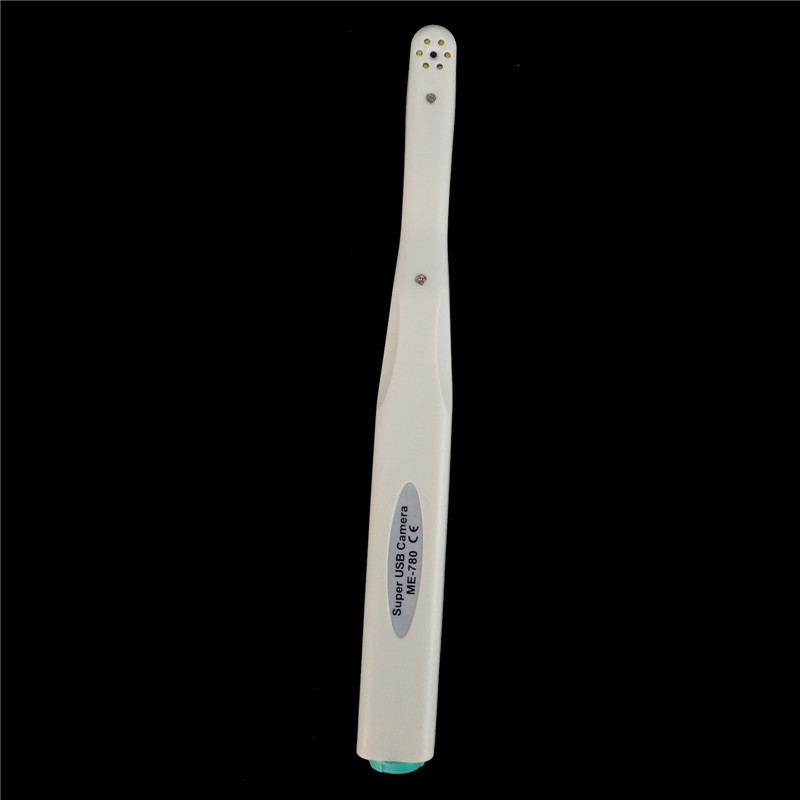

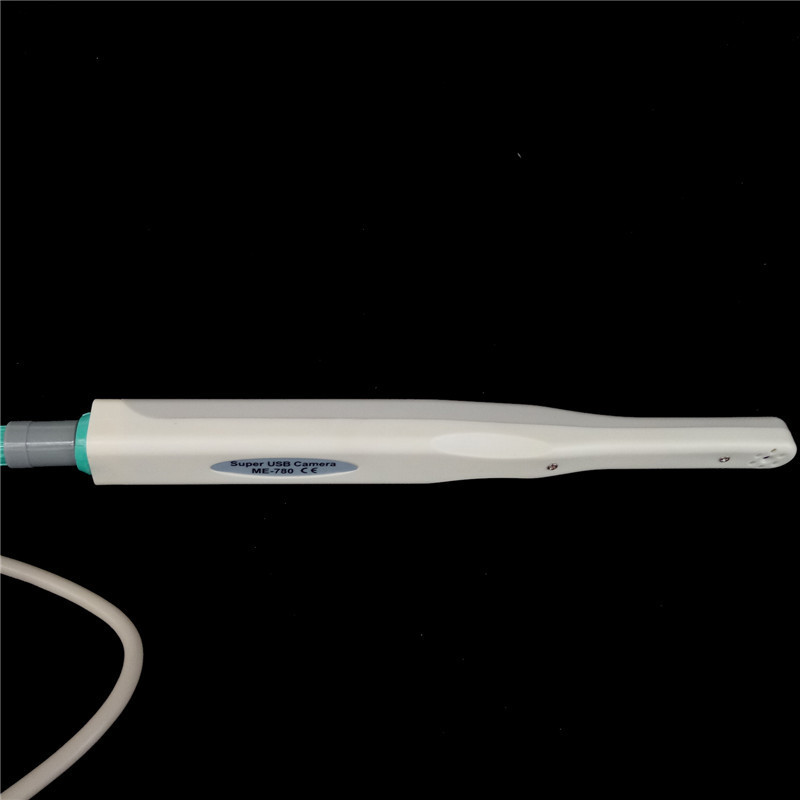

Super USB Camera ME-780
1.Specifications :
Image:1/4 inch CMOS
Effective Pixel layout :640*480,1600*1200,2048*1536,2272*1074
Video output :USB2.0 compliant full motion digital
fous range :5mm-30mm
illuminate :6LED
External power supply :one
hnadpiece weight :40g
Operation system :windows 2000/XP/VISTA/Win7
2 System Requirements
CPU Pentium :4.2GHz or higher
Operating system Windows xp professional for an intel 32-bit processor
with service pack 2 and KB 822603 update or later ,direct X9 or later
RAM 265M
CD ROM Drive 24X Speed
monitor SVGA 17" .800*600 or higher resolution or higher
video display asapter 16M video card
supporting 800*600 pixels with 32-bit color
standard keyboard and mouse
USB port must be USB 2.0 high speed ,high power port

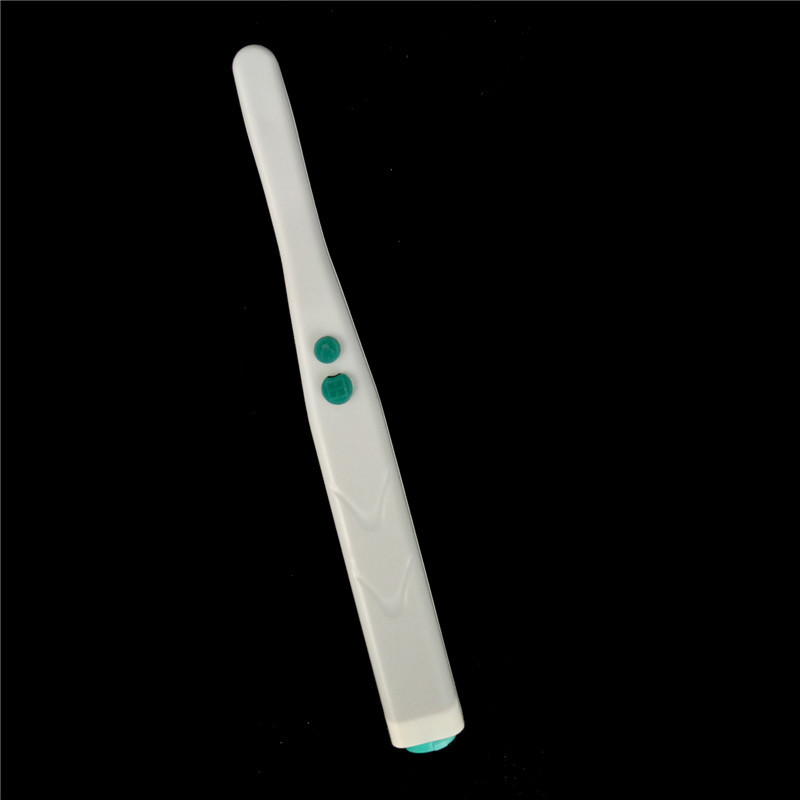

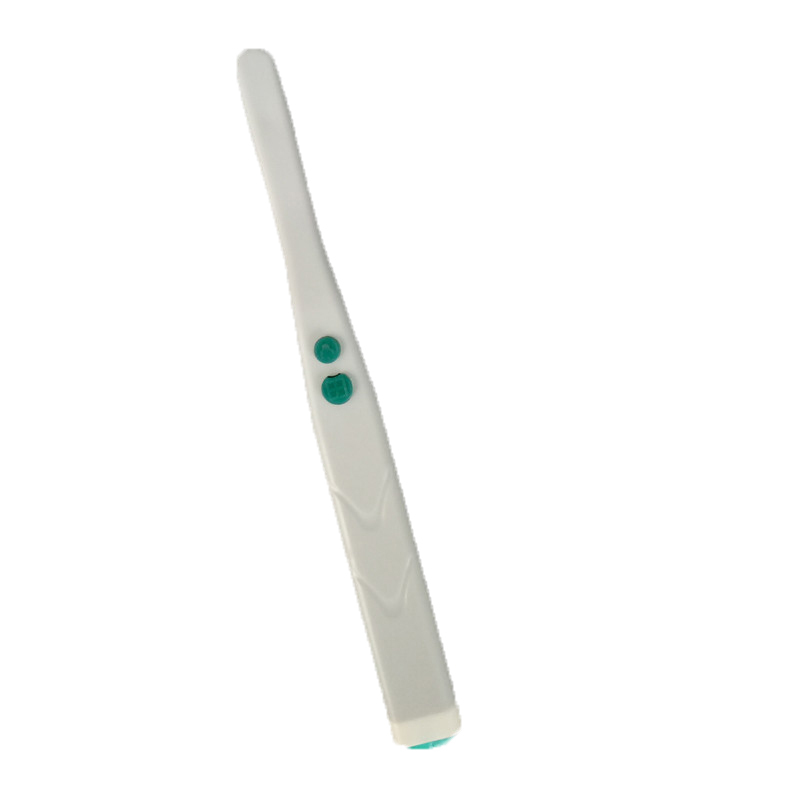

3.USB cam sketch Map
Description
indicator light :light on means handpiece have connected to computer

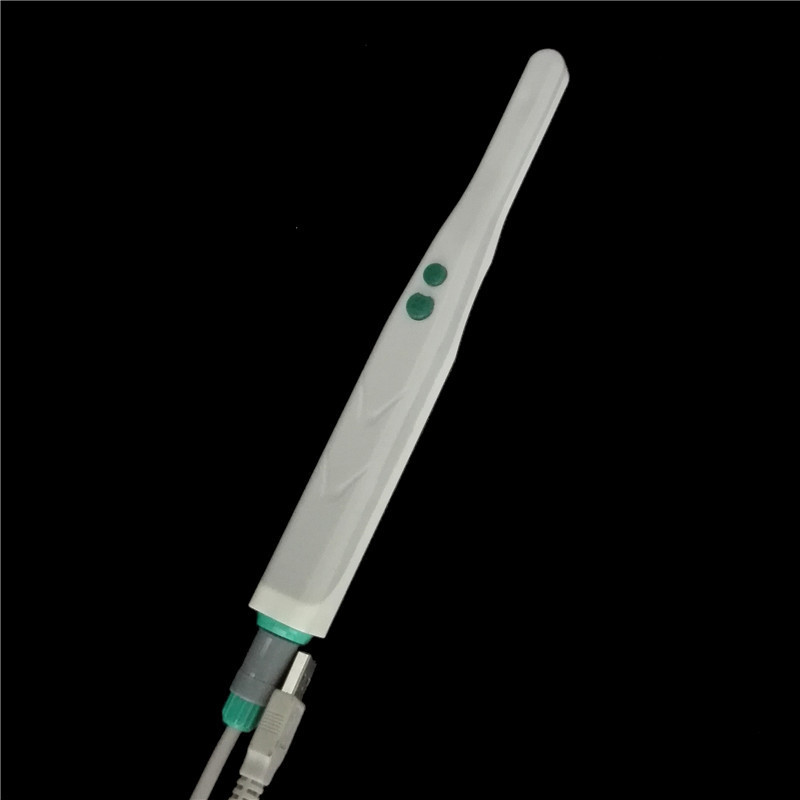

freeze button :freeze capture image
power on/off buttoon :control LED light ,when not using ,please turn off.
Avoiding the handpiece too hot to prolong its lifetime.

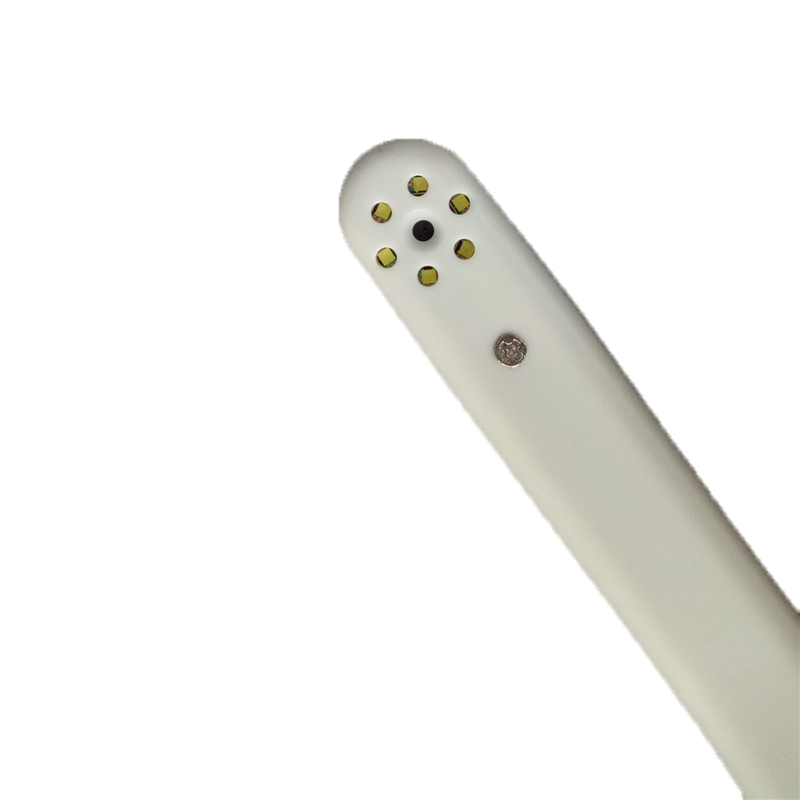

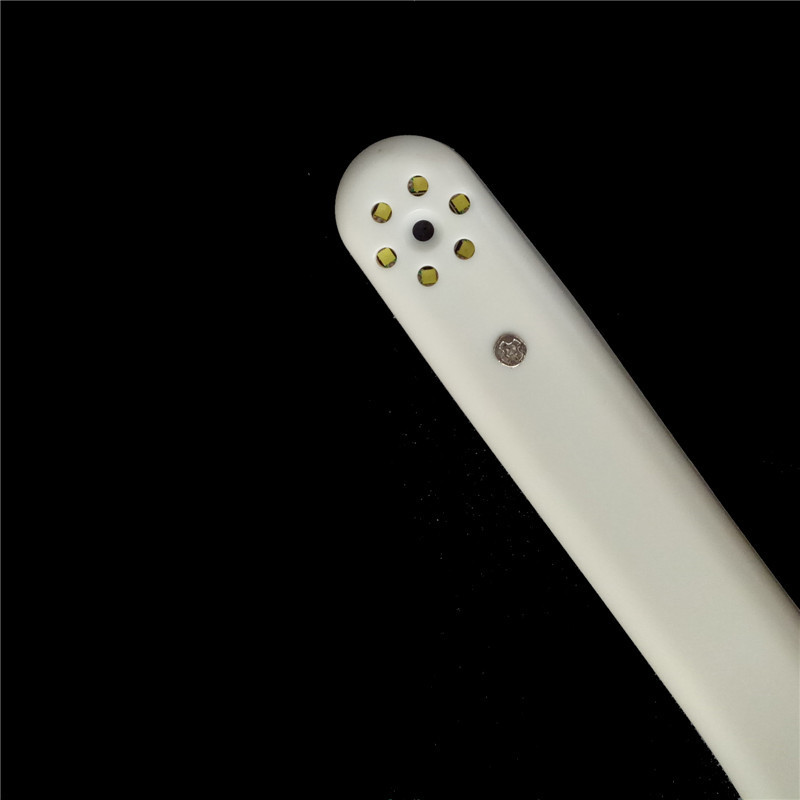

camera lens and light source :professional optical glass len and 6 light illuminationg LEDS
Camera golder :For supporting the handpiece .
When taking the teeth picture,you may feel that the picture is little bright,You can adjust the brightness.
Doubel click "Device Setting",youc an adjust Brightness in video proc amp ,our reference brightness value is 105.
Different monitor ,different brightness.
