Description:
Introduction:
■ The NON-RETRACTION structure in the handpiece, prevents suction of oral fluids in a patient's mouth into the water line of the handpiece at the spray water outlet port.
■ New triple water spray system can cool the treated area and the bur effectively and roundly. Clogging of the the spray port is thus minimized.
■ Connect with quick coupling, easy to load or unload the handpiece from the tubing of the dental unit. Water spray can be controlled in the quick coupling.

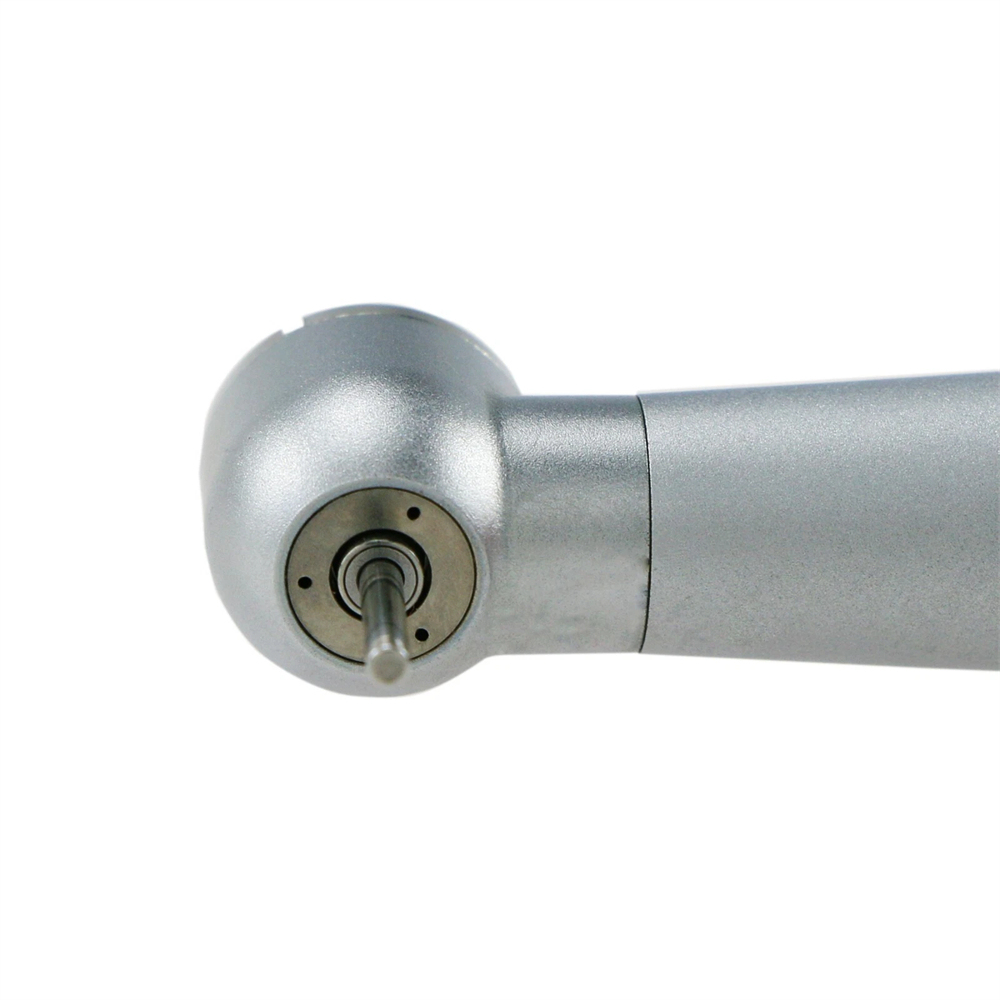

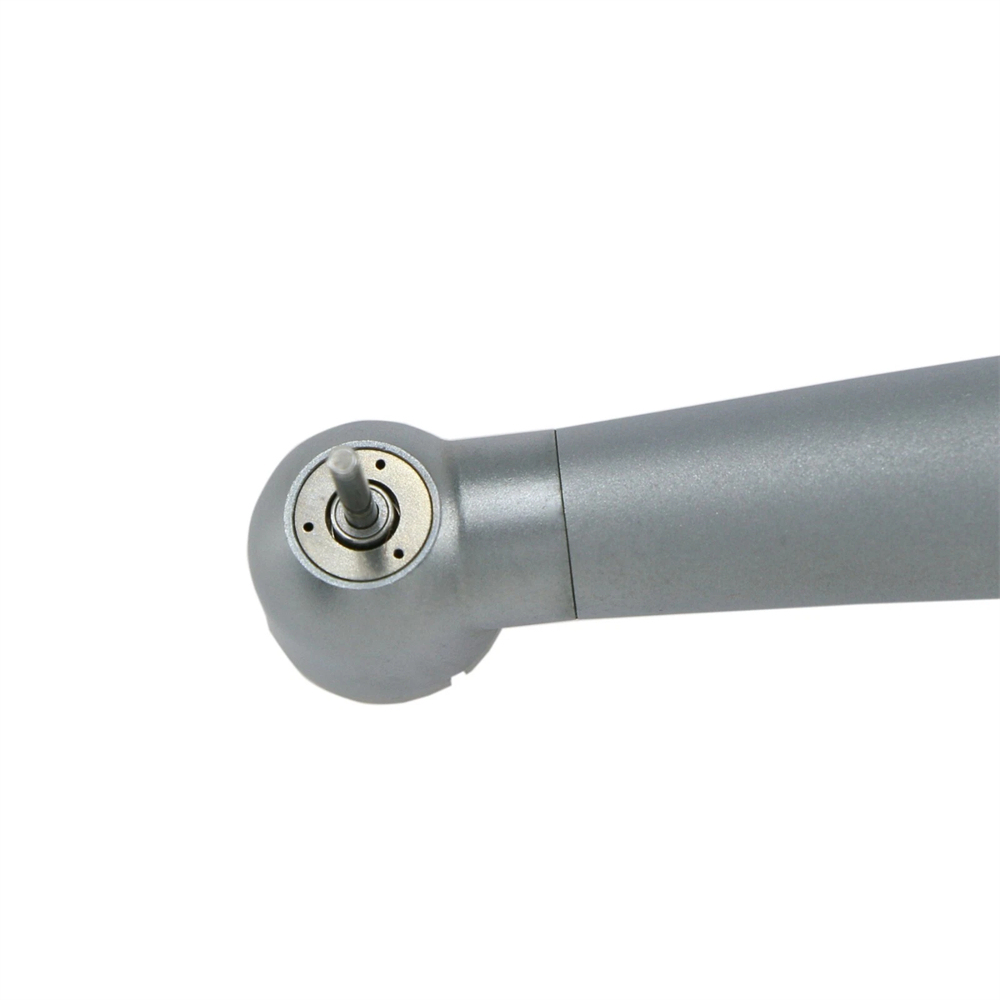

■ The machine head adopts a button-type design, easy changing cartridge.Newly-designed handle, comfortable to hold and easy to clean. Both handpiece and quick coupling are autoclavable. (up to 135℃)
■ High density Chinese bearings cartridge, with high cutting efficiency but less vibration and noise.

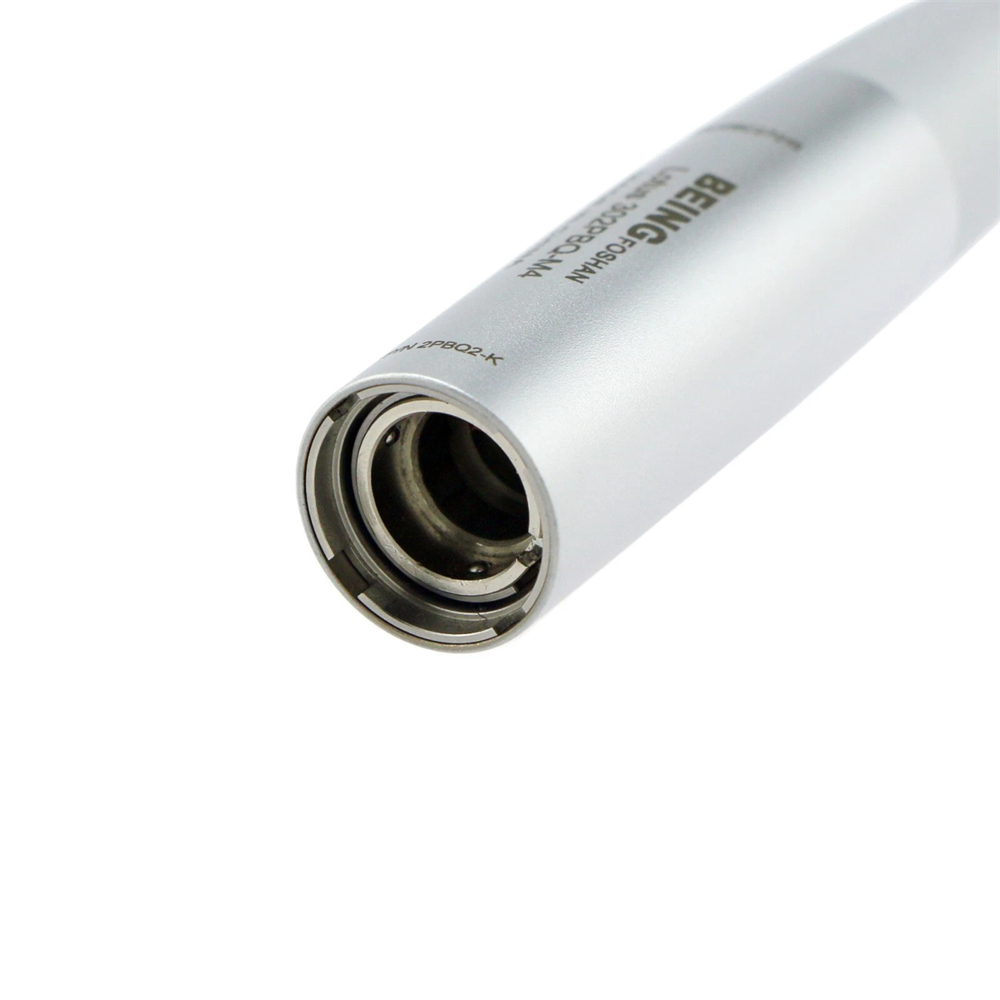

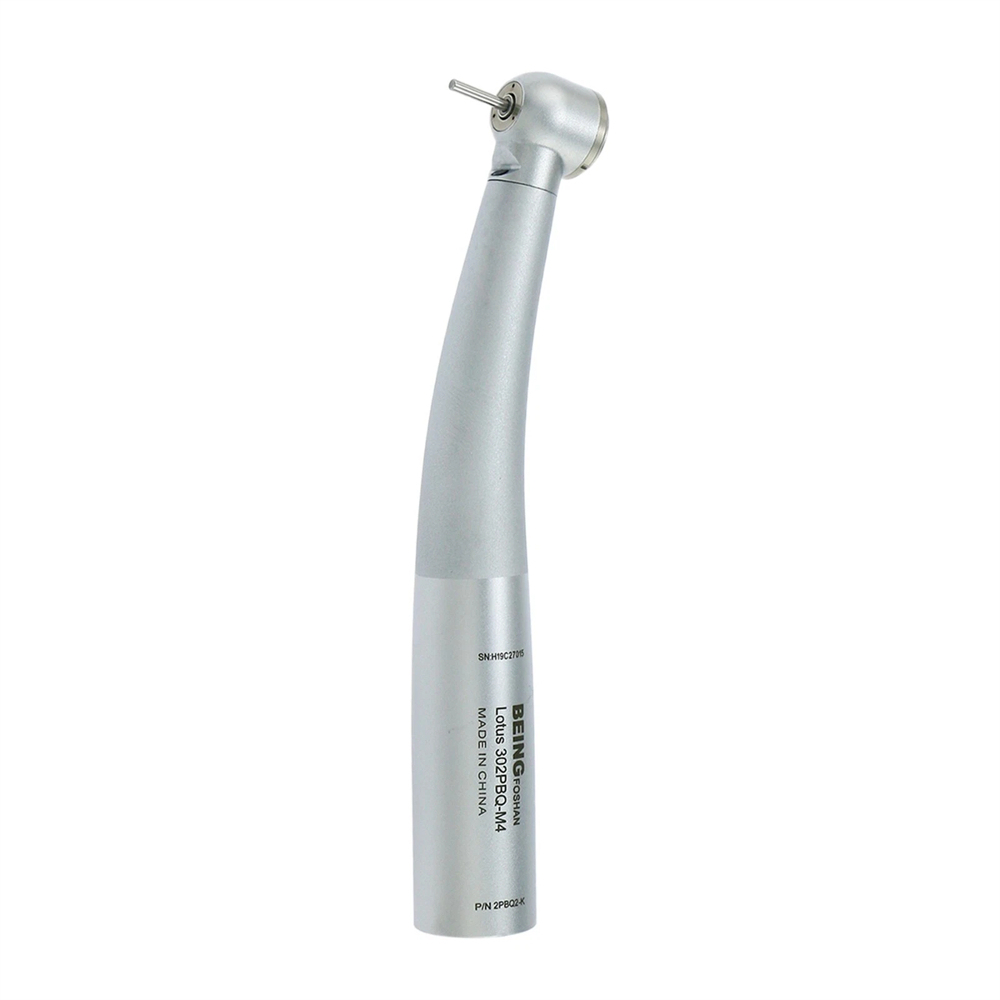

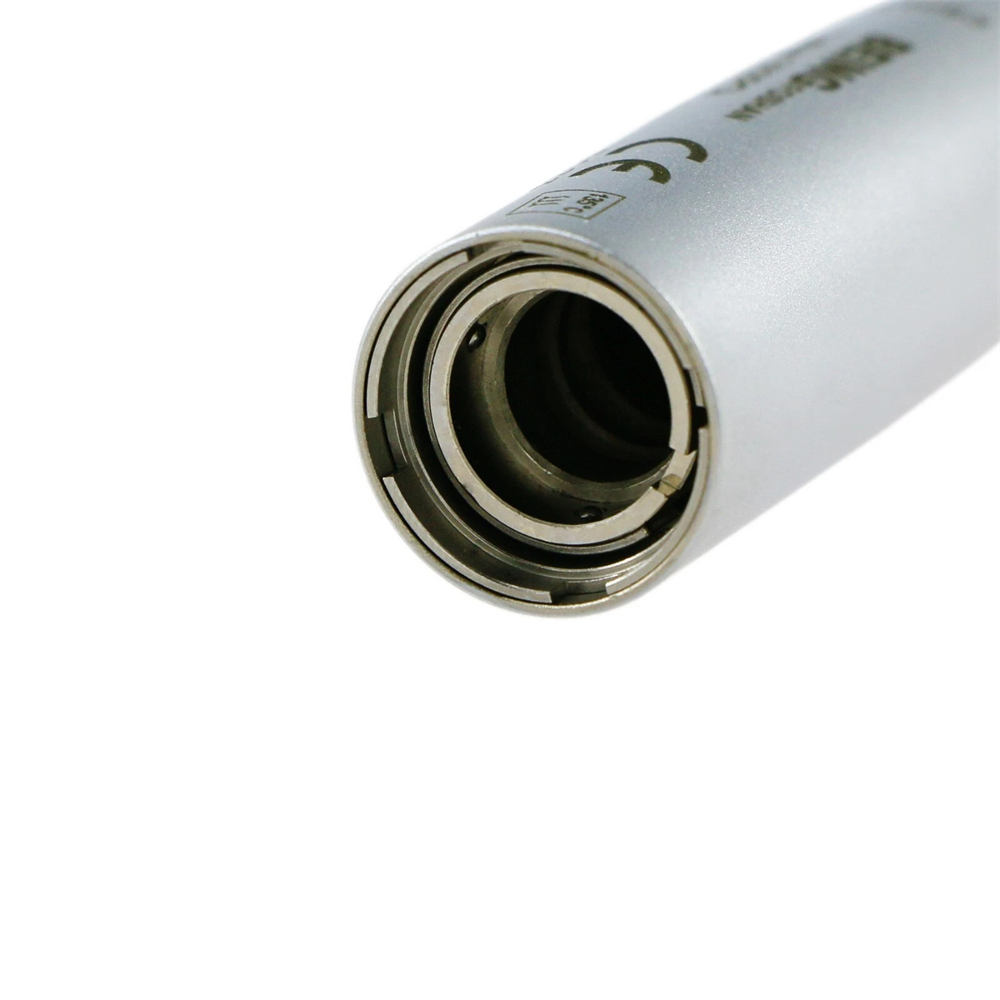

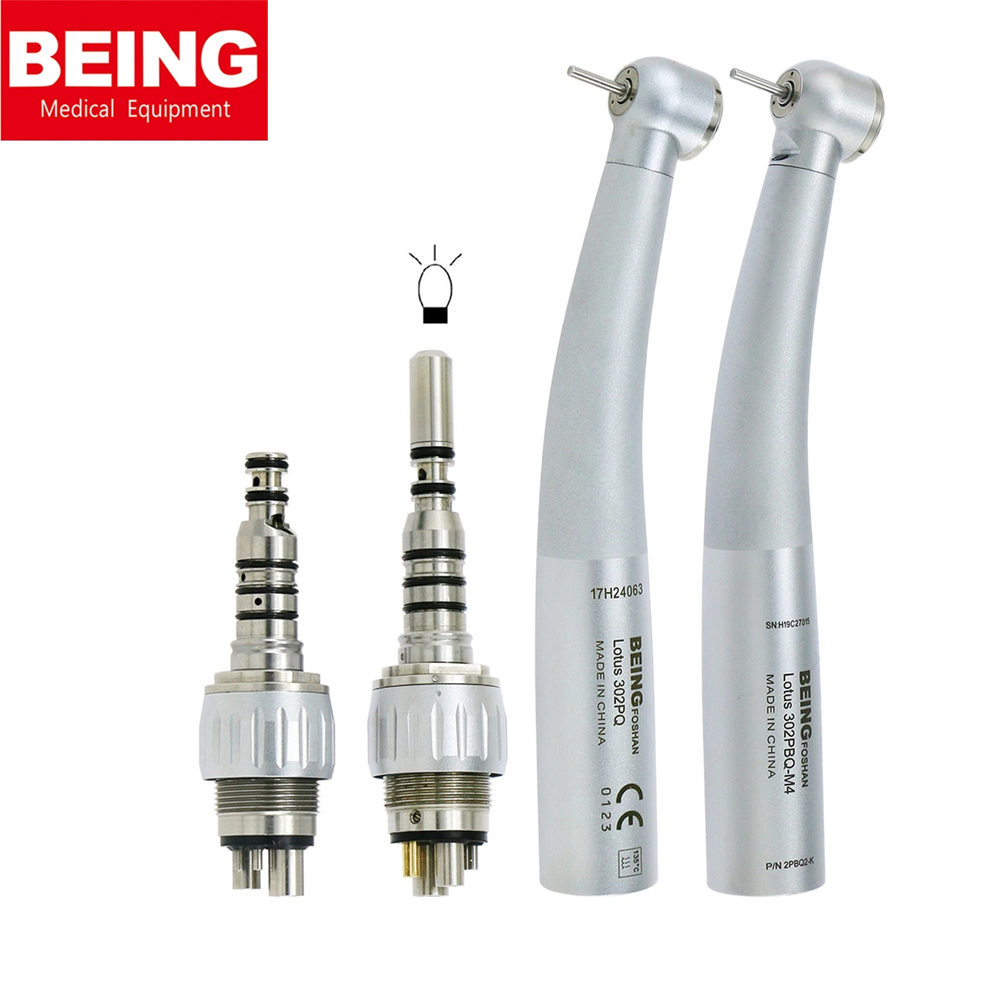

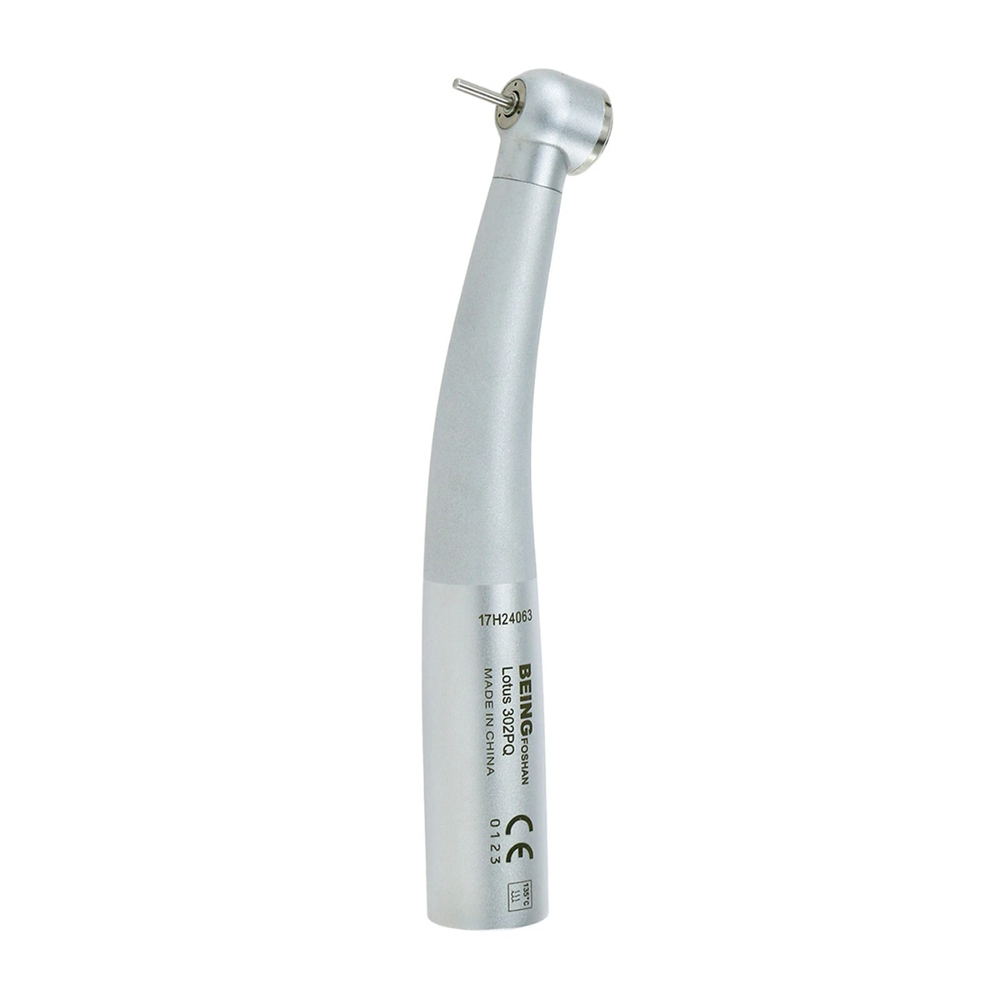

Description(302PQ-K, 302PBQ-K):
■ BEING Brand
■ Push button
■ 3 hole spray, anti-retaction.
■ With ceramic bearings, low noise and durable.
■ All turbine rotor passed the Germany balancing machine.
■ Air press at the back of the handpiece: 206~231 KPa (2.1~2.35kgf/cm2)
■ Air pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0 kgf/cm2)
■ Water pressure: 198Kpa (2 kg)
■ Rotation speed: 300,000-380,000 rpm (Big Head)
■ Head height: φ12.5 mmx13.02 mm (Big Head)
■ Chuch type: Push button
■ Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
■ Noise≤70dB
■ Intensity of light: 25000 lx
■ Source of Light: LED bulb
■ Voltage of bulb: 3.0~3.2 V

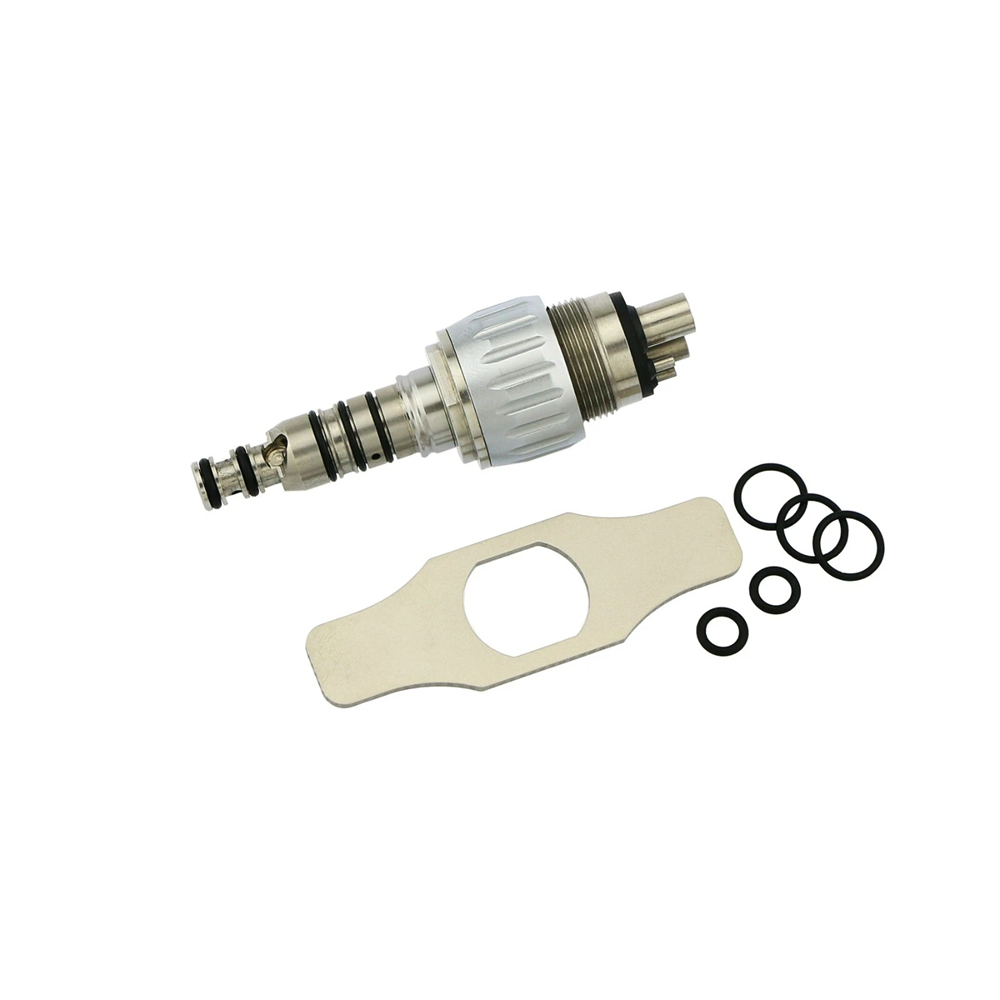

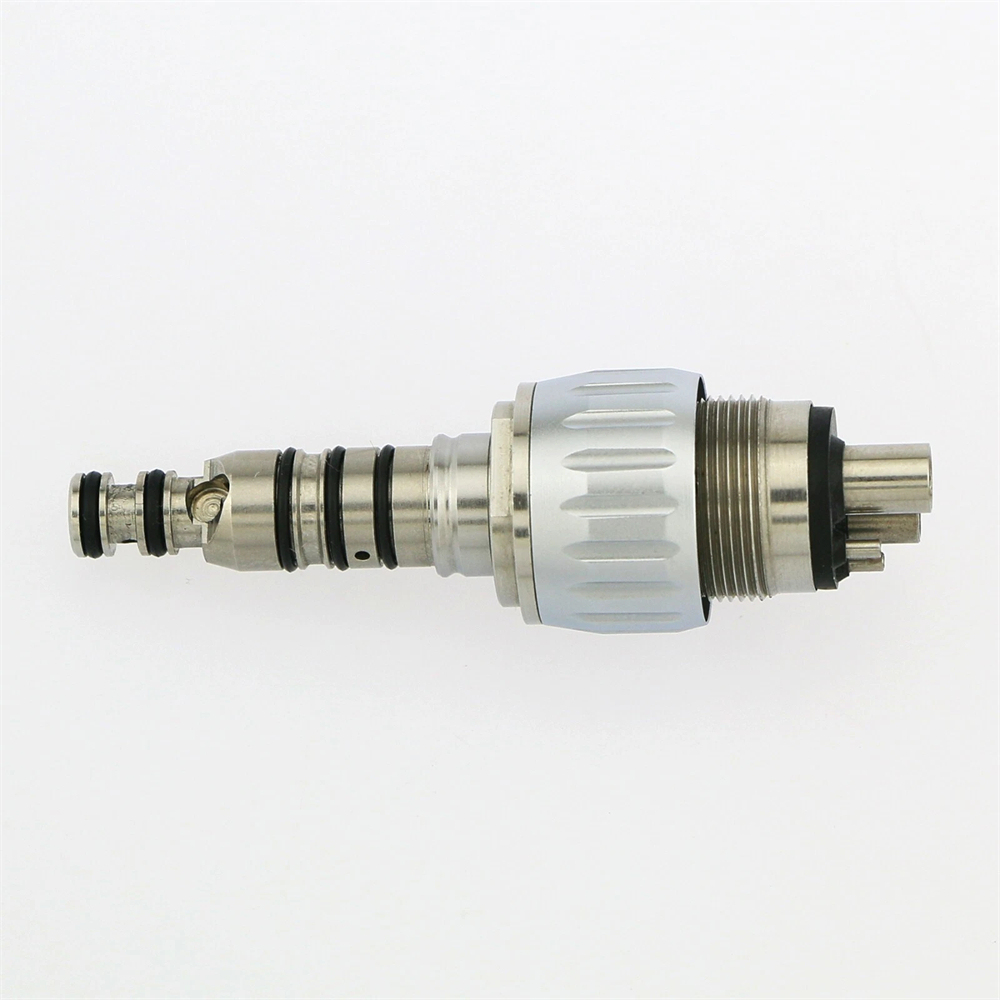

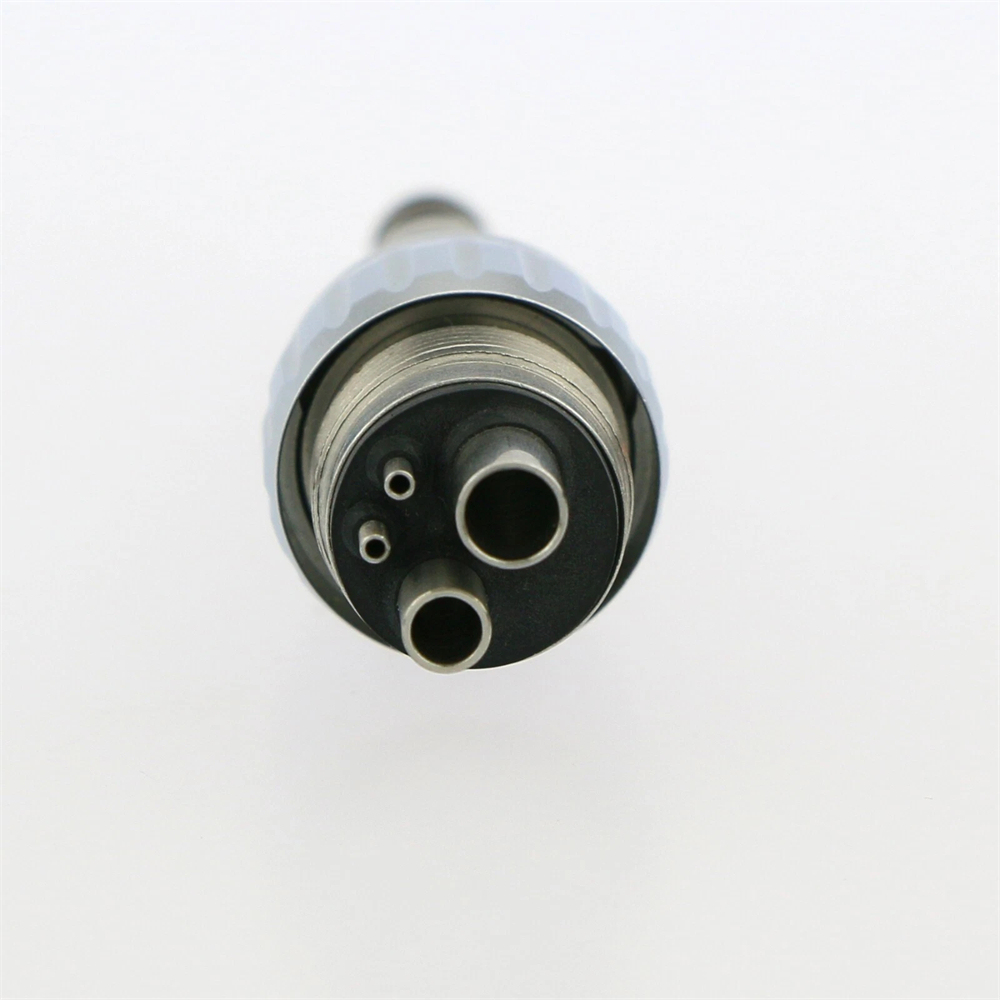

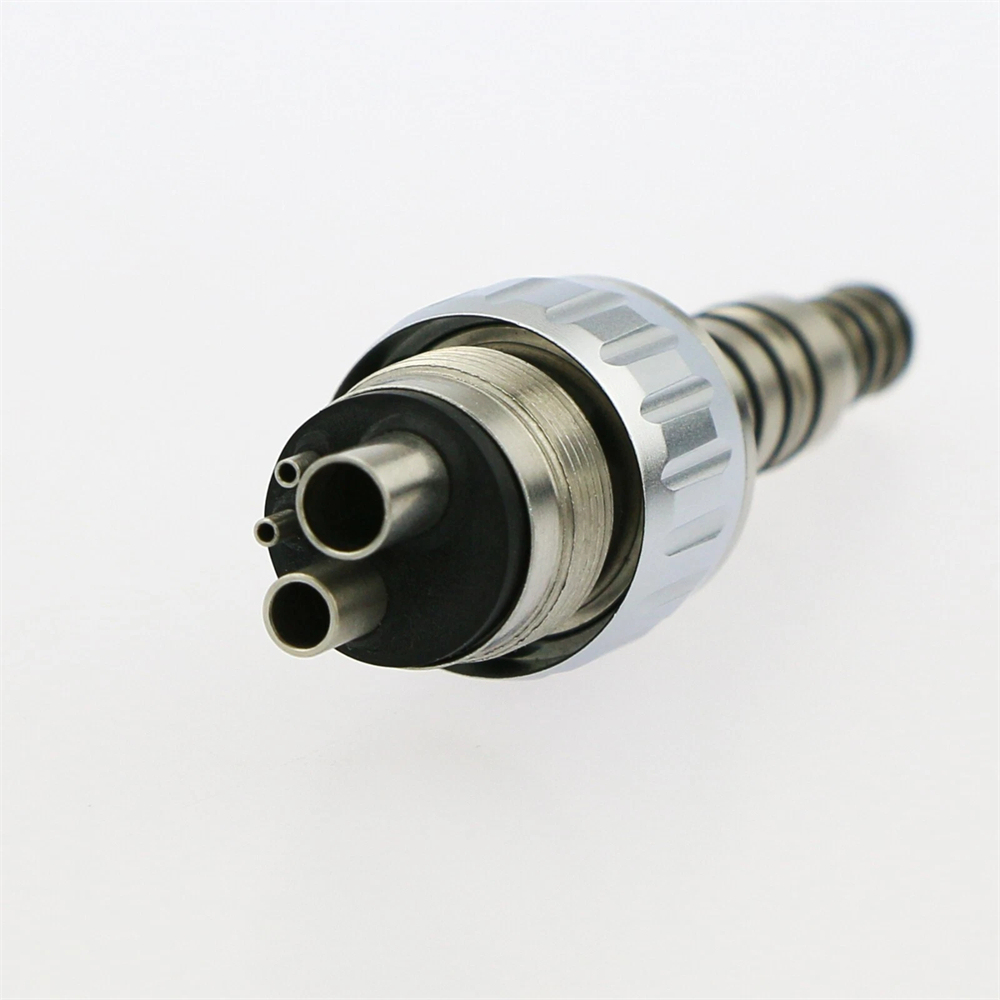

Coupler M4 fits KaVo MULTIflex Style:
■ BEING Brand
■ 4 Holes without LED
■ KAVO multiflex style quick coupling
■ 360 degree swivel
■ Anti retraction
■ Midwest 4 hole connection with drive air supply and exhaust, atomised water coolant and chip air
■ Autoclavable

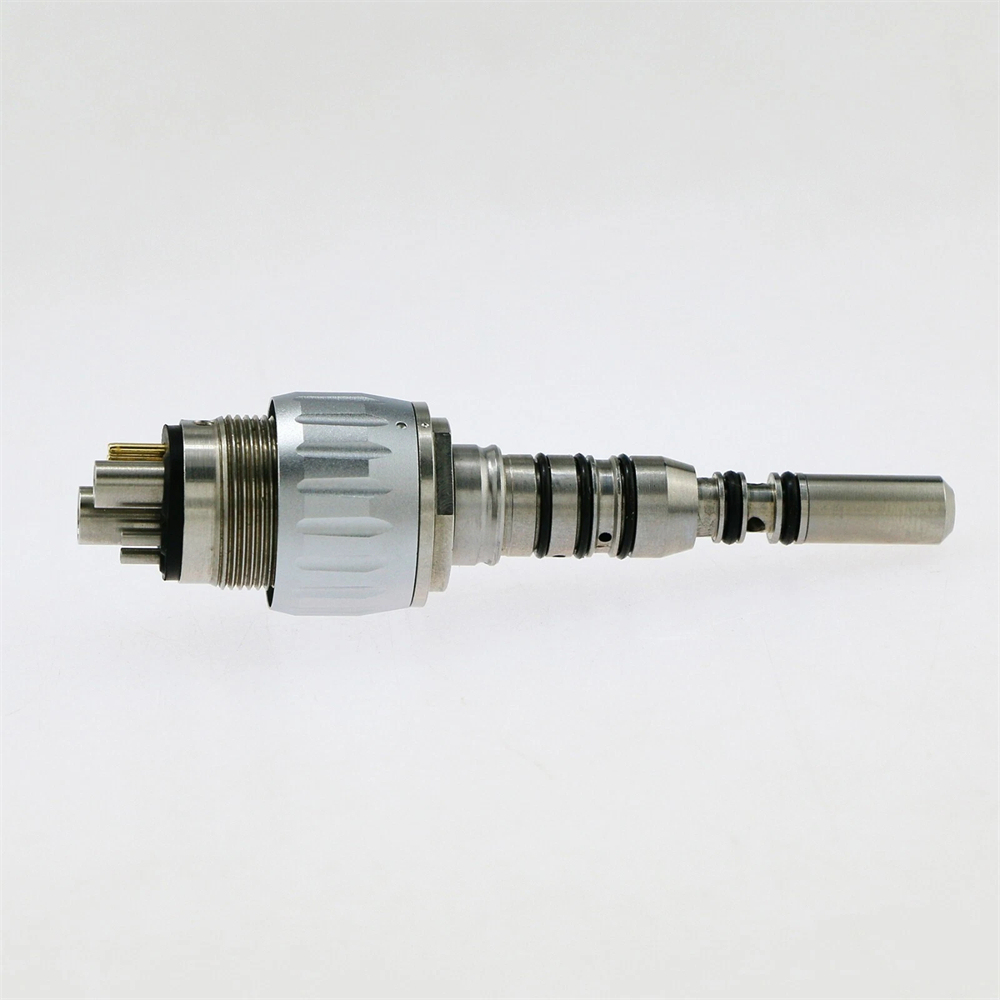

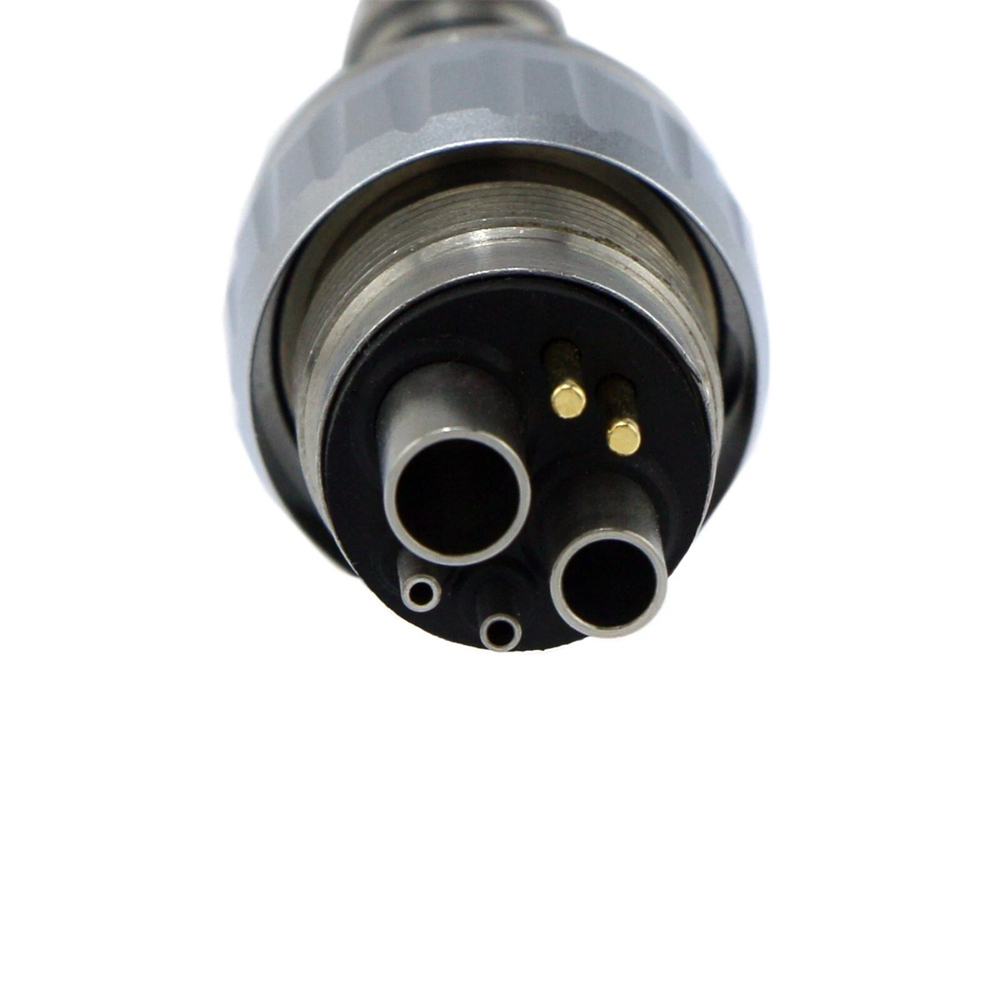

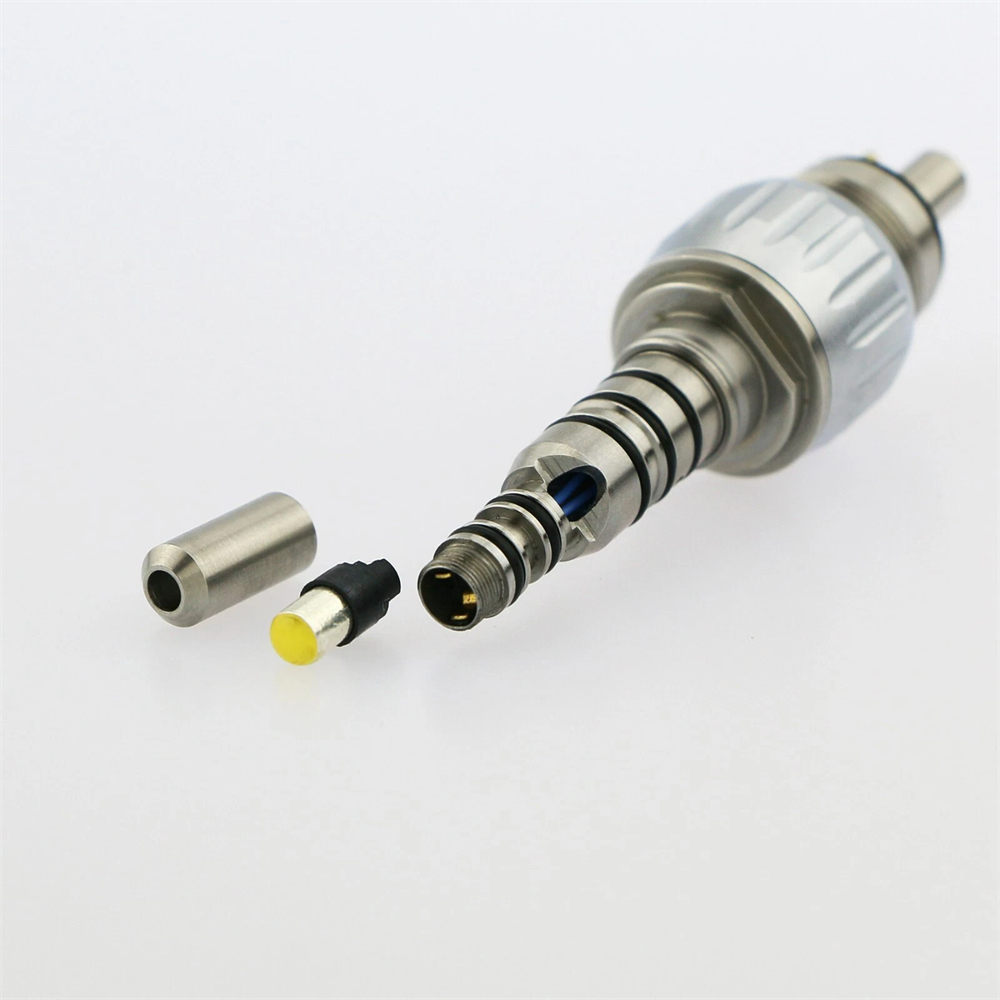

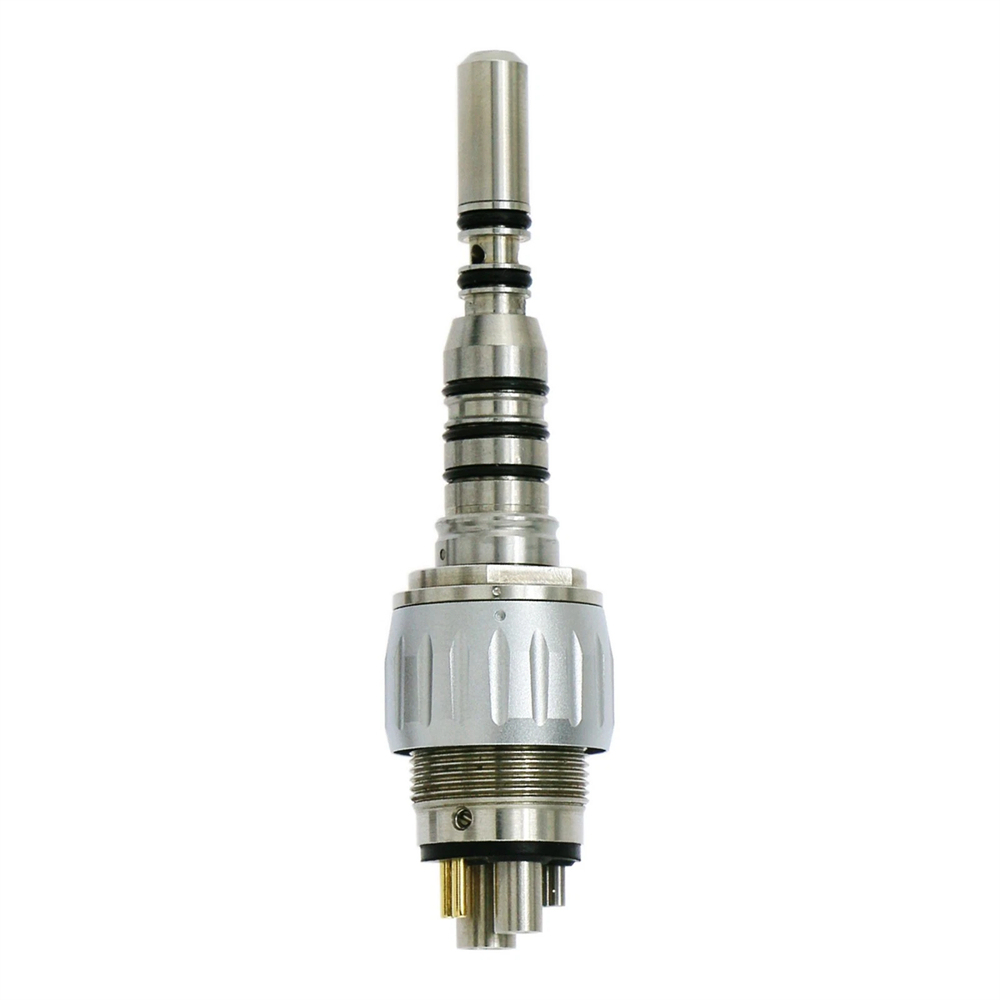

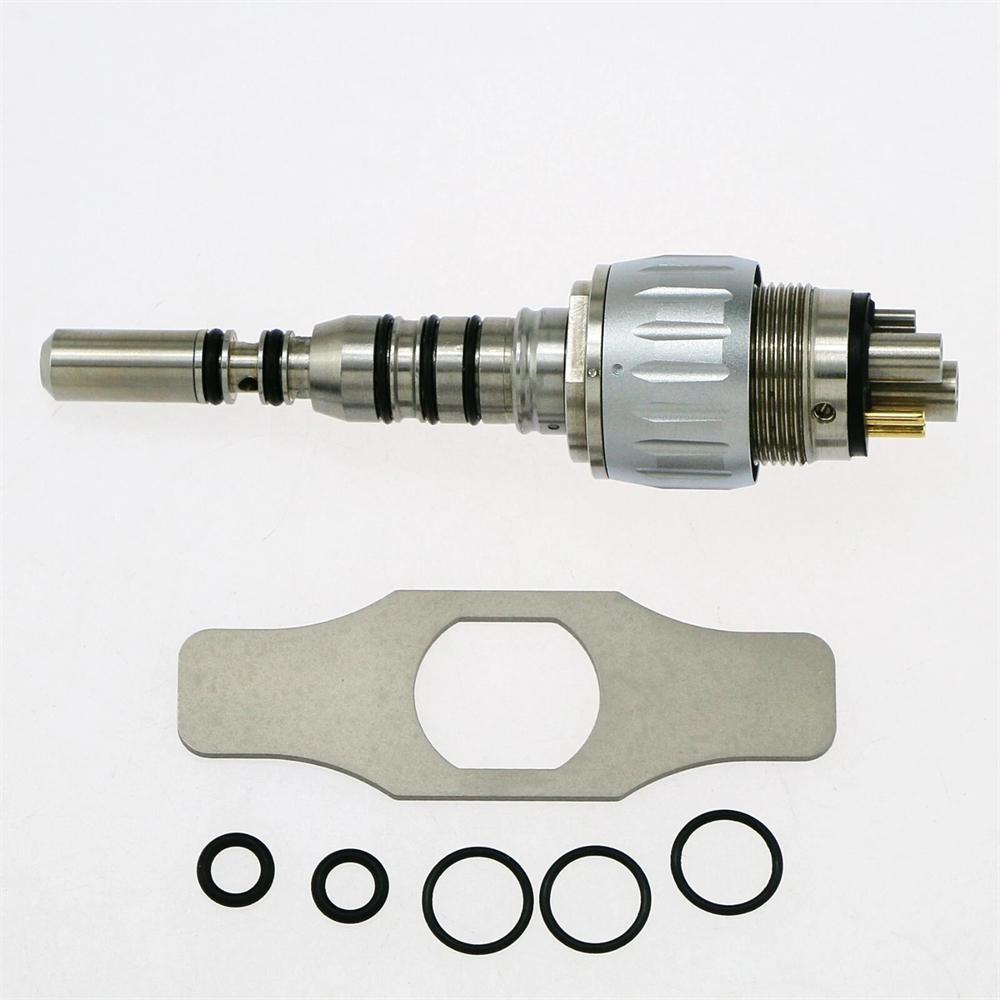

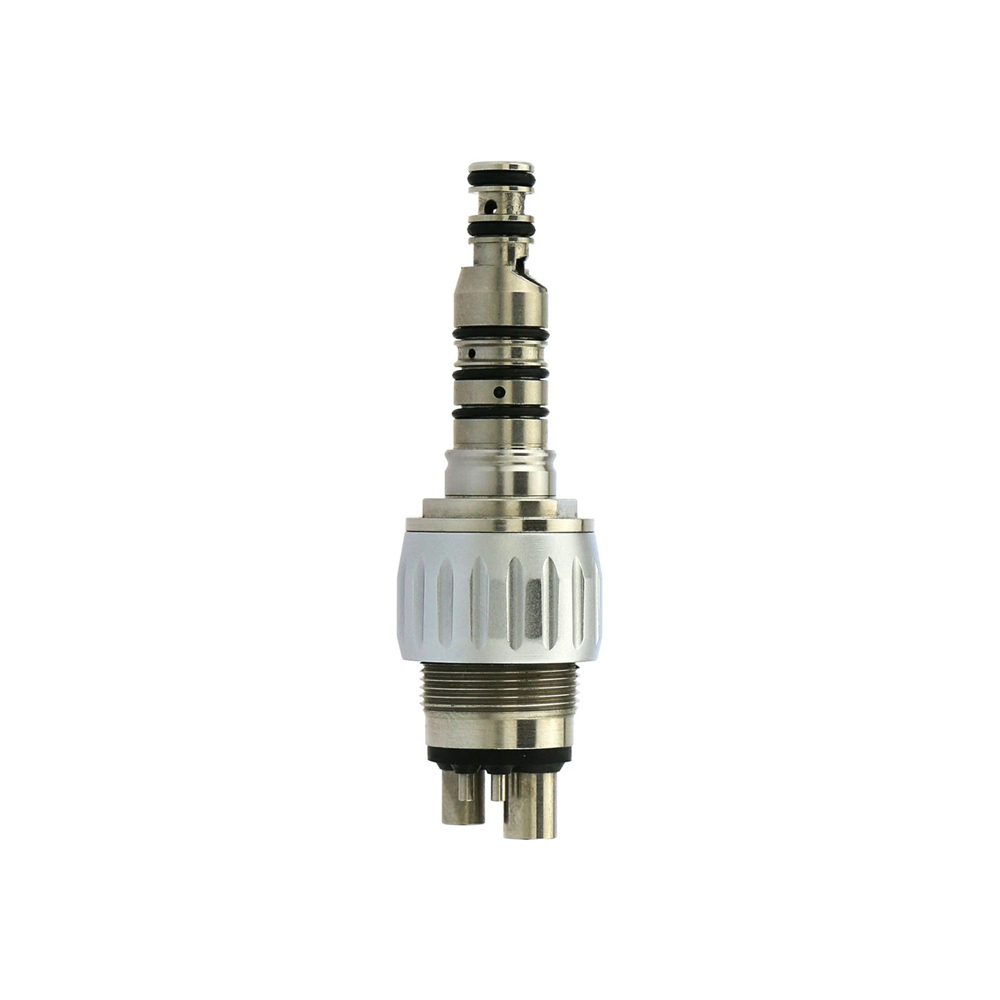

LED Coupling 6 Holes fits KAVO MULTIflex:
■ BEING Brand
■ Model: 302PBQK-QC
■ 6 Holes
■ For KAVO MULTIflex Handpiece
■ Easy to load or unload the handpiece from the tubing of the dental unit
